Machine health monitoring and predictive maintenance

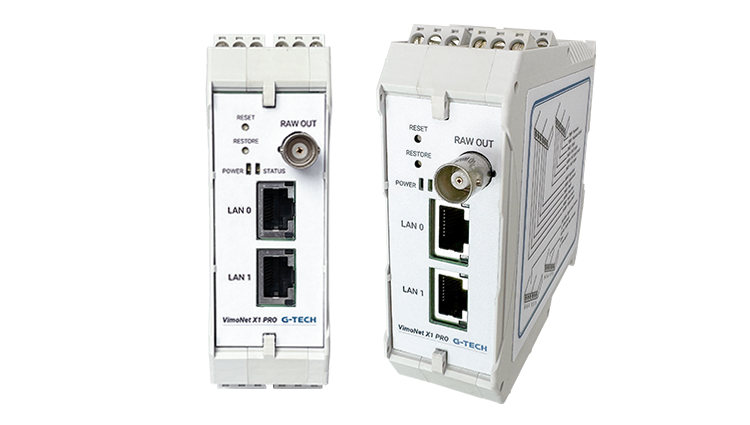

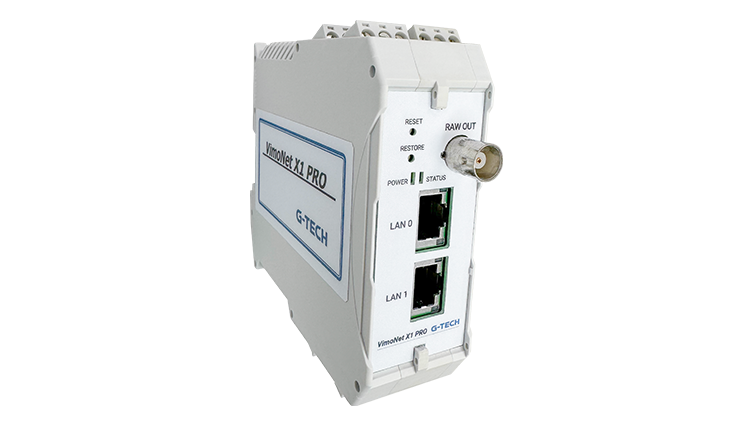

VimoNet X1 Machine Dynamic Signal Transmitter

Add to Inquiry
  • The 24-bit signal converter provides high precision and reliable measurement values.
  • It is equipped with two RJ45 network connectors to build a monitoring network via Ethernet, as well as wireless networks via commercially available Wi-Fi-based stations.
  • The built-in DSP chip can not only capture signals, but it can also compute and process digital signals and then send the processed data to a remote host through a network connection.
  • It has six built-in relay outputs, and the alarm values can be set. This design makes VimoNet an intelligent module that can operate independently, even without a network connection, to determine measurement values and to activate the necessary measures as a relay in specific situations.
  • It has an analog output available with 4-20mA or 0-10V output.
  • The API allows users to perform system integration.
  • It is convenient, allowing users to quickly set and monitor signal status
  • Vibration online monitoring
  • Low frequency vibration measurement of bridges and buildings
  • Slop and landslide monitoring
  • Semiconductor robot arm monitoring
